ONE-WIRE TRANSMISSION

NOVEMBER 2015





  • #
  • #
  • #
  • #
  • #
  • #







This is a working demonstration of a Non-Hertzian transmitter.

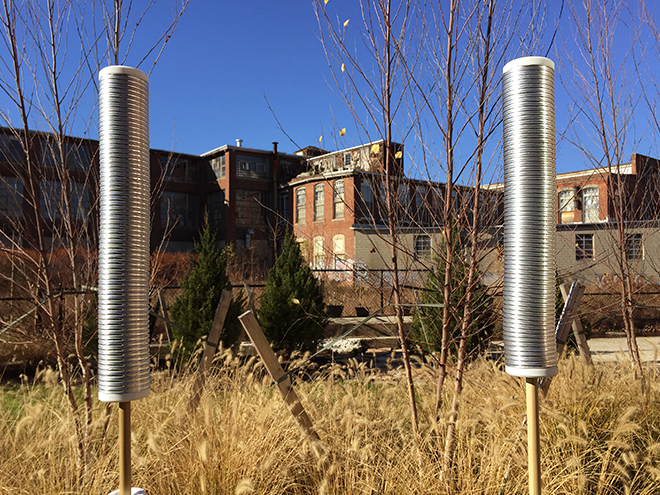

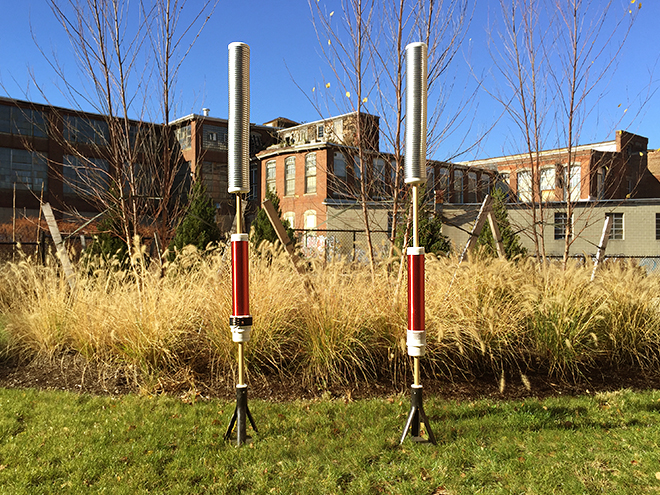

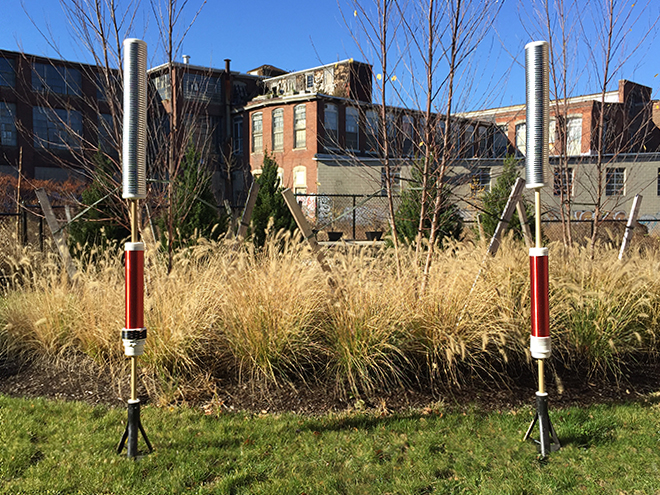

Original experiments and patents held by Nicola Tesla. The set up shown above exhibits high impedance matched anntenas and is currently good for demonstrating power transmission through one wire by suppressing the pressure that builds up at the top of the coil to maximize current flow downward into the earth.

Instead of radiating the electrcity into the air, as seen in a classical Hertzian antenna, this antenna launching structure represses the oscilating energy downward into the grounded earth connection. This current design operates at 60kHz with a high impedance rating, and is only good for near field transmissions. A lower impedance, higher Q coil is needed for the ground currents needed to effect recievers at distances furthur than 100 feet.

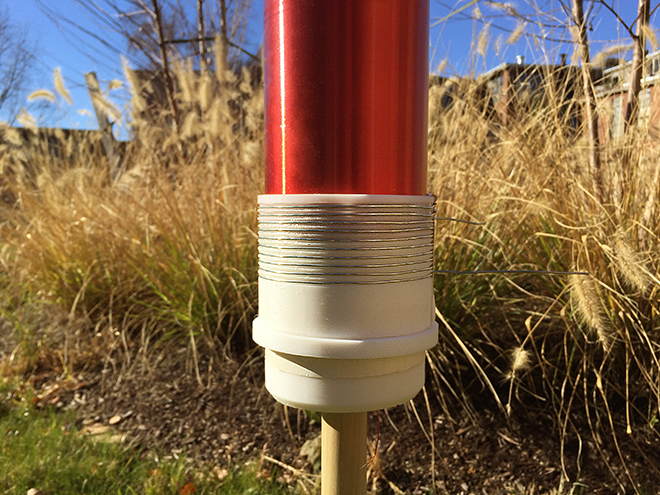

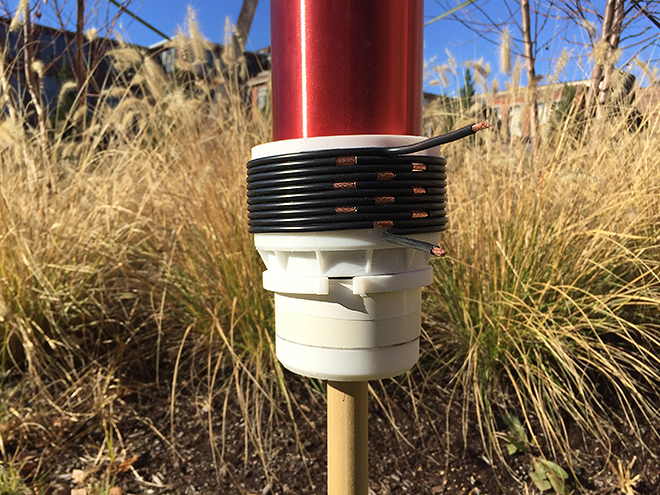

Structures are composed of 3D printed ABS and PVC.













This is a video of compiled plasma experiments with this specific aperatus. Overlaied with writings from Eric Dollard on the subject of non-hertzian waves
